Jy41W-40T氧氣管路專用截止閥產品規范
公稱壓力：4.0MPa
公稱通徑：25mm～500mm
適用介質：O2、N2、Ar、Air等
適用溫度：-40～+80℃
連接方式：法蘭
介質流向：由閥瓣下面向上流
氧氣介質：禁油
Jy41W-40T氧氣管路專用截止閥主要零部件材料
閥體、閥蓋：銅合金
閥瓣：銅合金
閥桿：不銹鋼
填料、密封圈：PTFE

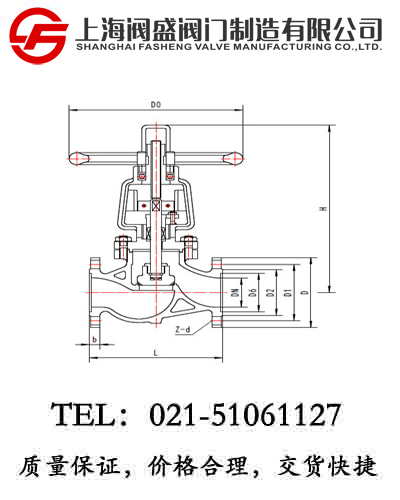

Jy41W-40T氧氣管路專用截止閥外型尺寸與連接尺寸
|
產品型號 |
Jy41W-40T氧氣管路專用截止閥 |
重量
(kg) |
|
產品代號 |
通徑
DN |
尺寸 |
|
L |
D |
D1 |
D2 |
D6 |
b |
Z-Φd |
H |
D0 |
|
Y422J15GM2A4 |
15 |
130 |
95 |
65 |
45 |
40 |
16 |
4-14 |
202 |
100 |
6 |
|
Y422J25GM2A4 |
25 |
160 |
115 |
85 |
65 |
58 |
16 |
4-14 |
236 |
125 |
8 |
|
Y422J40GM2A4 |
40 |
200 |
145 |
110 |
85 |
76 |
18 |
4-18 |
328 |
160 |
19 |
|
Y422J50GM2A4 |
50 |
230 |
160 |
125 |
100 |
88 |
20 |
4-18 |
450 |
320 |
37 |
|
Y422J65GM2A4 |
65 |
290 |
180 |
145 |
120 |
110 |
22 |
8-18 |
530 |
360 |
52 |
|
Y422J80GM2A4 |
80 |
310 |
195 |
160 |
135 |
121 |
22 |
8-18 |
560 |
400 |
69 |
|
Y422J100GM2A4 |
100 |
350 |
230 |
190 |
160 |
150 |
24 |
8-23 |
618 |
450 |
93 |
|
Y422J125GM2A4 |
125 |
400 |
270 |
220 |
188 |
176 |
28 |
8-25 |
675 |
450 |
120 |
|
Y422J150GM2A4 |
150 |
480 |
300 |
250 |
218 |
204 |
30 |
8-25 |
743 |
560 |
153 |
|
Y422J200GM2A4 |
200 |
600 |
375 |
320 |
282 |
260 |
38 |
12-30 |
850 |
640 |
304 |
|
Y422J250GM2A4 |
250 |
650 |
445 |
385 |
345 |
313 |
42 |
12-34 |
975 |
720 |
560 |
|
Y422J300GM2A4 |
300 |
750 |
510 |
450 |
408 |
364 |
46 |
16-34 |
1115 |
800 |
805 |
|
Y422J400GM2A4 |
400 |
950 |
655 |
585 |
535 |
474 |
58 |
18-41 |
1425 |
900 |
1408 |
|
Y422J500GM2A4 |
500 |
1250 |
755 |
670 |
615 |
576 |
57 |
20-42 |
1835 |
1200 |
1790 |
|
注：DN≤150不帶外旁通 介質流動方向：由閥瓣的下面向上流 |
